The 3066877 Cummins KTA19 camshaft is engineered for high-output K19 and QSK19 engines. Our induction-hardened steel construction resists surface spalling and ensures precision timing.
Product Categories:
Product Tags:
Send us a message

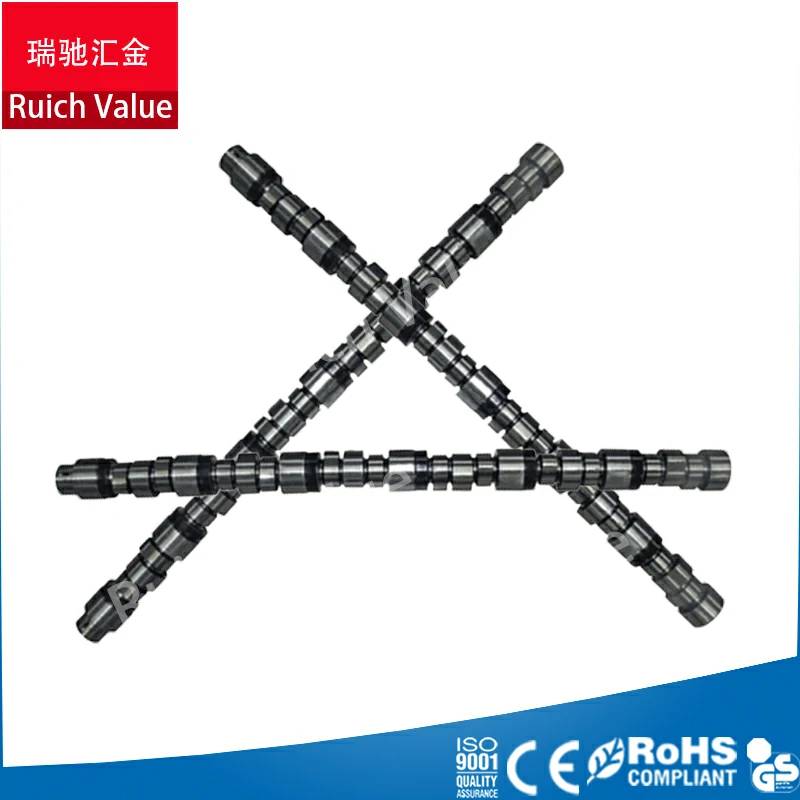

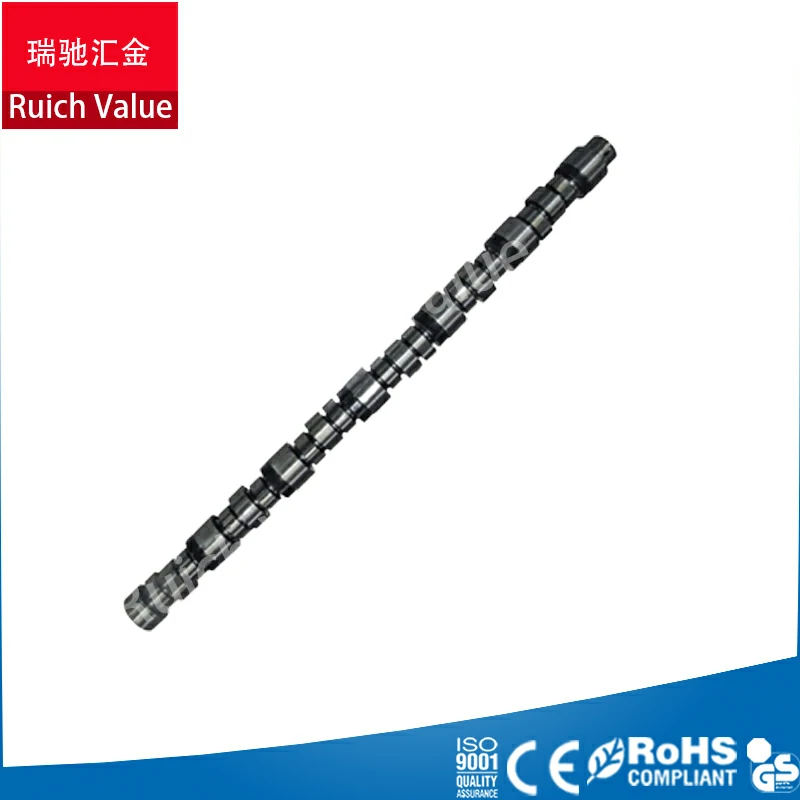

The Cummins K19 / KTA19 / QSK19 camshaft (OEM: 3066877) is a precision-engineered component for the legendary K-Series heavy-duty engine.
It features deep induction hardening to withstand the extreme stresses of mining and marine applications.
In stock for global export.
Our manufacturing process focuses on critical surface hardness. By using high-strength steel with induction-hardened lobes and journals, we mitigate common issues like surface pitting (spalling) that often plague overworked K19 engines. Choosing our aftermarket camshaft ensures that your heavy-duty equipment maintains optimal fuel efficiency and power delivery during its next major rebuild.
| Specification | Value |
|---|---|
| Product Type | Camshaft |
| Engine Model | K19 / KTA19 / QSK19 |
| Material | Induction Hardened Steel |
| Treatment | Deep Case Hardening (Lobes/Journals) |
| OEM Reference | 3066877, 3045615, 3072233 |
| Cross Reference | K19 Camshaft, QSK19 Cam |
| Condition | Brand New Aftermarket |
| Engine Model | Application Field | Typical Equipment Brands |
|---|---|---|
| Cummins KTA19 | Mining / Construction | Dump Trucks (CAT/Komatsu), Excavators |
| Cummins QSK19 | Power Generation | Industrial Gensets (Standby/Prime) |
| Cummins K19 Marine | Marine | Marine Propulsion & Auxiliary Power |
Ruich Value supplies a dedicated range of Cummins engine parts, including new aftermarket and remanufactured replacements. For a complete catalog of our Cummins camshafts, please contact our sales team.
| Model | Main PN | Cro. Ref. PN | Engine Model | Application |
|---|---|---|---|---|
| V28 | 4073134 | 3070838, 3053525, 3801308, C3970366 | V28 Series (V12) | Heavy-duty Mining (Terex), Marine, Large Gensets |
| NH220 | 3801114 | 3044767, 3042568, 111888 | NH220 / NT855 Small Cam | Classic Heavy Trucks, Early Generators, Construction Machinery |
| V903 | 199180 | 3070838, 3053525 | V903 / VT903 Series | Agricultural Machinery, Drilling Rigs, Military |
| NT855 | 3801030 | 3044767, 3047452, 3801749 | NT855 Big Cam | Heavy-duty Trucks, Mining (Komatsu), Power Generation |
| 4BT | 3929039 | 3925582, 3929038, 3929885 | 4BT Series (3.9L) | Light Trucks, Skid Steer Loaders, Pumping Units |
| 6BT | 3949042 | 3929886, 3907824, 3914639, 3929041, 3283179 | 6BT Series (12-Valve) | Dodge Ram, Freightliner, Agricultural Tractors |
| 6CT | 3934168 | 3914640, 3923478, 3917882, 3929734, 3924471, 3356593 (Kit) | 6CT Series (8.3L) | City Buses, Construction Cranes, Graders |
| ISB6.7 | 3979506 | 3954099, 3976620, 3966431, 3966430 | ISB6.7 / QSB6.7 Series | School Buses (Blue Bird), Delivery Trucks (Paccar) |
| L10 | 3801110 | 3803528, 3049024, 3065891 | L10 Series | Vocational Trucks, Garbage Trucks, Transit Buses |
| M11 | 3803703 | 3084568, 3417765, 3804300 | M11 / ISM11 Series | Heavy-duty Fleet Trucks, Cement Mixers |
| N14 | 3803555 | 3066892, 3417766, 3803965 | N14 Select / Plus | Class 8 Over-the-Road Trucks (Peterbilt, Volvo) |
| K19 | 3066877 | 3066881, 3076767 | K19 / KTA19 Series | Mining Excavators, Marine Propulsion, Industrial |
| K38 | 3066884 | 3020613, 3066882 | K38 Series (V12) | High-Horsepower Generators, Mining Trucks |
| K50 | 3066291 | 3066292, 3076769 | K50 Series (V16) | Marine Vessels, Extra-Large Mining Equipment |
| ISX15 | 4101432 | 4298626, 4089371, 4954905 | ISX / QSX15 (Signature) | Highway Trucks, Freight Transportation |
| ISF 2.8 | 5267994 | 5267994 (Standard) | ISF 2.8 Series | Foton Tunland, JAC Trucks, Light Vans |
| ISF 3.8 | 4995830 | 4995830 (Standard) | ISF 3.8 Series | Medium Duty Trucks, Foton Aumark |
The K19 is a high-output engine. The most common issues are lobe pitting due to oil contamination and bearing journal damage caused by oil pressure loss. Routine oil analysis is highly recommended to monitor metal content and prevent camshaft failure.
Our 3066877 camshafts are manufactured to meet or exceed OEM steel metallurgical standards. By utilizing deep induction hardening on the lobes, we provide the surface hardness necessary to prevent early surface degradation, making them an excellent cost-effective alternative for engine rebuilds.
Yes. Because the K19 engine is massive and carries heavy tolerances, always check the camshaft bushing clearances before final installation. Use high-quality assembly lube on all lobes and journals to prevent “dry starts,” which can cause immediate, irreversible damage to new camshaft surfaces.
