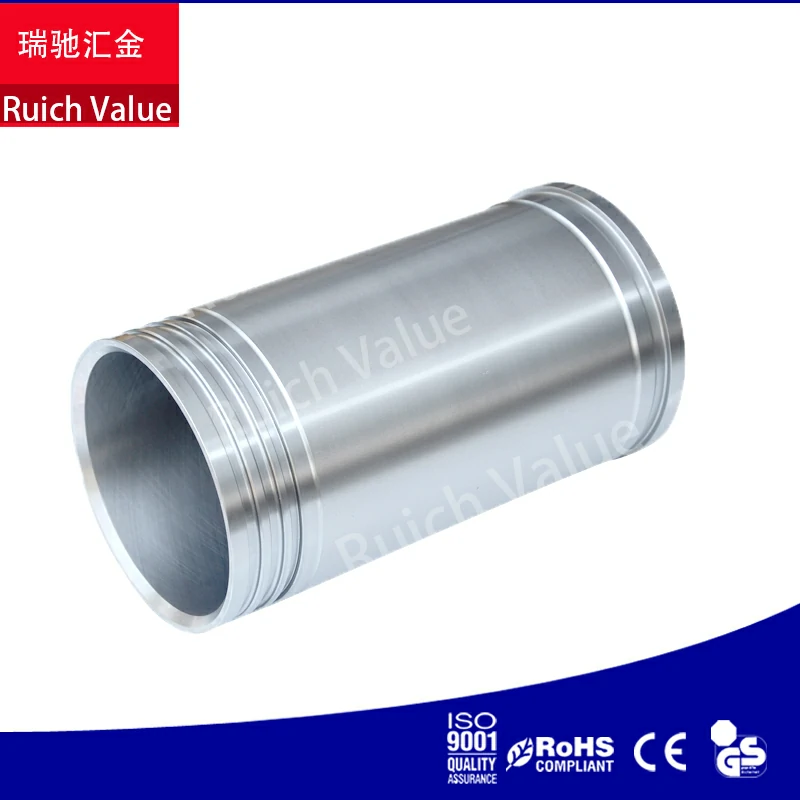

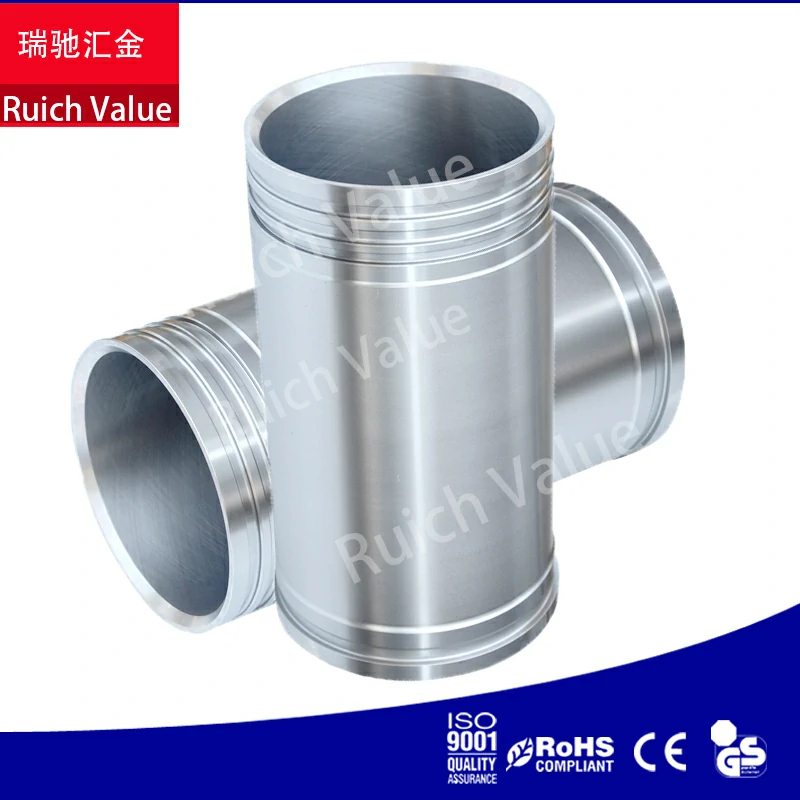

Isuzu 6SD1 Cylinder Liner (OEM 8-97223-108-0)

Heavy-Duty Combustion Seal: Isuzu 6SD1 Cylinder Liner Replacement

In the high-stress environment of heavy-duty logistics and industrial power, the cylinder liner serves as the primary wear interface for the 6SD1 powertrain. Ruich Value supplies precision-engineered Isuzu 6SD1 Cylinder Liners designed to restore factory-spec compression and oil control. Replacing OEM reference 8-97223-108-0, our sleeves provide the structural density required to withstand the high thermal loads of Isuzu Giga and Forward truck series.

Our manufacturing process utilizes centrifugal casting to eliminate porosity and ensure a uniform grain structure. This metallurgical integrity is critical for preventing hairline fractures and resisting the corrosive effects of modern diesel fuels. Meticulously machined to finished tolerances, these liners allow for a seamless interference fit, ensuring optimal heat transfer from the combustion chamber to the engine block’s cooling galleries.

Technician’s Note: Block Inspection

Before installing the new 8-97223-108-0 liner, it is mandatory to inspect the engine block’s cylinder bores for cavitation or pitting. Even minor surface irregularities in the block can prevent the liner from seating correctly, leading to “hot spots” or liner movement under high compression. We recommend using a high-quality press lubricant to ensure a smooth, uniform installation into the block.

Technical Specifications: Isuzu 6SD1 Liner

Why Source Isuzu Engine Parts from Ruich Value?

• Centrifugal Casting Excellence: Our liners are spun at high speeds during casting to push impurities to the surface, creating a harder, more wear-resistant ID surface for the piston rings.
• Plateau Honed Finish: The finely cross-hatched inner surface ensures immediate ring seating and optimal oil film retention, reducing initial break-in wear and oil consumption.
• B2B Logistics Support: We maintain ready stock for high-demand Isuzu models, supporting parts distributors and fleet maintenance centers with immediate wholesale fulfillment.
• ISO Certified Quality: Every batch undergoes rigorous quality control to ensure exact dimensional alignment with OE block tolerances.

Comprehensive Isuzu Cylinder Liner Range

Our catalog covers the full spectrum of Isuzu propulsion needs, from light-duty N-series to heavy-duty industrial and truck engines.

Looking for more components? Explore our Isuzu Cylinder Liner Catalog

Technical FAQ: Isuzu 6SD1 Cylinder Liner

Q: Is this liner suitable for the 6SD1-TC turbocharged version?

A: Yes. Our 6SD1 liners are manufactured from alloyed gray iron designed to withstand the higher combustion temperatures and pressures found in the turbocharged and intercooled 6SD1-TC engines used in heavy-duty transport.

Q: Is this a “Finished” or “Semi-Finished” liner?

A: This is a Finished Liner. It has been pre-honed to the final internal diameter (ID) and is ready for installation. Unlike semi-finished liners, no additional boring or honing is required after it is pressed into the block.

Q: What is the benefit of the Centrifugal Casting process?

A: Centrifugal casting utilizes G-force to create a high-density metallic structure. For 6SD1 liners, this results in superior resistance to bore polishing and scuffing, extending the engine’s service life between overhauls compared to standard static castings.
